HC-serie

HC10DTP Classic

Perfect entry-level model for collaborative automation

Overview

The MOTOMAN HC10DTP Classic is the perfect cobot for entry-level collaborative automation.

It offers a payload of 10 kg, an absolute reach (center of rotation S/L axis to center of rotation R/T axis) of 1,379 mm and an effective reach (center of rotation S/L axis to working point P) of 1,200 mm.

Typical applications are collaborative, simple assistance tasks in handling and assembly, palletizing, loading/unloading of machine tools or quality i nspection.

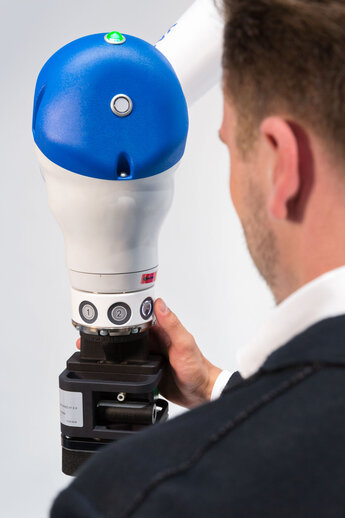

The MOTOMAN HC10DTP Classic can be operated and programmed using hand guiding, standard teach pendant or the intuitive Smart Pendant. For particularly efficient programming via hand guiding, it has Direct Teach buttons on the wrist that can be used to accept taught positions immediately without having to confirm them on the teach pendant. This reduces programming times and makes it suitable for both professional system integrators and newbies. Many safety functions, e.g. automatic retraction from a clamping situation, or simply pushing the robot away with resumption of movement, distinguish it as a professional collaborative robot.

The MOTOMAN HC10DTP Classic is switchable between safely monitored operation and full power and speed, with this mixed operation (hybrid robot) it achieves very good cycle times. Media cables for the supply of grippers or tools are pre-routed in the arm and are led out at the wrist, so that in many cases bulky external cable packages are not required.

Technical Details

Number of Axes
6

Payload
10 kg

Max. Working Range
1379 mm

Repeatability
0.05 mm

Weight
48 kg

Power Supply
1 kVA

Maximum Speed S Axis
130 °/s

Maximum Speed L Axis
130 °/s

Maximum Speed U Axis
180 °/s

Maximum Speed R Axis
180 °/s

Maximum Speed B Axis
250 °/s

Maximum Speed T Axis
250 °/s

Mounting Options
Ceiling

Downloads

Name
HC10DTP Classic 2D CAD/CAE \|	CAD/CAE
HC10DTP Classic 3D CAD/CAE \|	CAD/CAE
Flyer Cobot HC10DTP Classic Human-Collaborative Robot incl. 6 integrated Sensors with internal Cable Routing Data sheet \| English	Data sheet	English
Flyer Cobot HC10DTP Classic Human-Collaborative-Roboter inkl. 6 integrierter Sensoren mit interner Medienführung Data sheet \| German	Data sheet	German
Flyer Cobot HC10DTP Classic Robot collaboratif - 6 Capteurs d’Effort Intégrés avec faisceau interne pour les câbles Data sheet \| French	Data sheet	French
Assistenzroboter_Kollaborative Applikationen Brochures \| German	Brochures	German
Robot Assistants_Collaborative Applications Brochures \| English	Brochures	English
