GP FGG Series
GP8 FGG
Agile 6-Axis Robot for Food Handling Applications
Overview

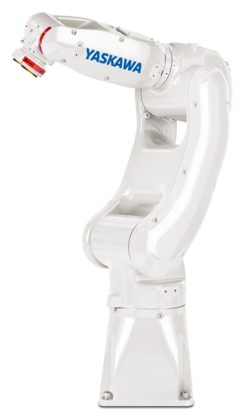

The MOTOMAN GP8 FGG is a compact and high speed handling robot which provides a payload of 8 kg.
Food grade grease allows this robot to be used in food related applications in secondary and tertiary packaging.
Its drip proof design assures smooth disposal of a liquid on the robot surface.
Technical Details
- Number of Axes
- 6
- Payload
- 8 kg
- Max. Working Range
- 727 mm
- Repeatability
- 0.01 mm
- Weight
- 35 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Mounting Options
- x No
- Further Specifications
- x No
Downloads
| Name | |||
|
Brochure Robots GP-FGG-Series
Handling & General Application for the Food Industry Brochures | English |
Brochures | English | |
|
Flyer Robots GP-FGG-Serie
Handling & Allgemeine Applikationen für den Lebensmittelbereich Brochures | German |
Brochures | German | |
| GP8 2D CAD/CAE | | CAD/CAE | ||
| GP8 3D CAD/CAE | | CAD/CAE |
