HD Series
HD8
Industrial Robot in Hygienic Design
Overview
With its modern design, the HD Series meets the strict standards for applications in the food, life sciences, laboratory automation, medical and pharmaceutical sectors. These robot models are particularly suitable for laboratory, humid and cleanroom environments, are easy to clean and resistant to commonly used disinfectants and disinfection processes.
The product can be operated with an intuitive Smart Pendant or conventional Teach Pendant.
As a MOTOMAN product, the HD8 robot guarantees the highest industrial quality standards and reliability for many years of 24/7 operation.
In addition to being suitable for use in hygienic areas up to the highest cleanroom class – GMP class A according to EHEDG, EN
1672-2 and ISO 14159 – the HD8 is also certified to cleanroom class 4 according to ISO 14644-1, in accordance with the measurement and assessment procedures defined in ISO 14644-14.
KEY BENEFITS

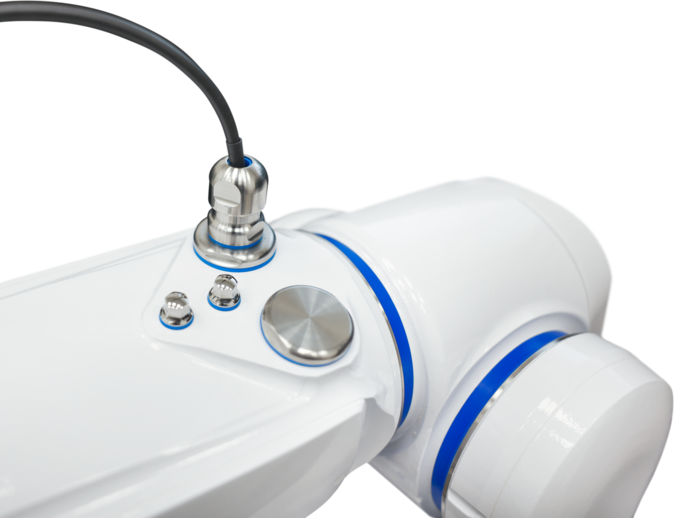

• Hygienic Design: Encapsulated housing, no protruding screws
• Robot connectors on the bottom
• Internal cable routings including ethernet connectivity
• Hygienically designed axes and flange with O-ring groove
• Low airborne particle generation
• Food Grade Grease
• IP69K protection class
CLEANABILITY
• Special coating with excellent mechanical and chemical resistance
• FDA certified surface materials
• Antimicrobial, smooth surface
• Selected and approved axle sealing design and material
CERTIFICATIONS
• GMP conform: Class A
• ISO 14644-1, Cleanroom class 4
• EN 1672-2:2005+A1:2009
Technical Details
- Number of Axes
- 6
- Payload
- 8 kg
- Max. Working Range
- 727 mm
- Repeatability
- 0.02 mm
- Weight
- 45 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 455 °/s
- Maximum Speed L Axis
- 385 °/s
- Maximum Speed U Axis
- 520 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
