GP-serie

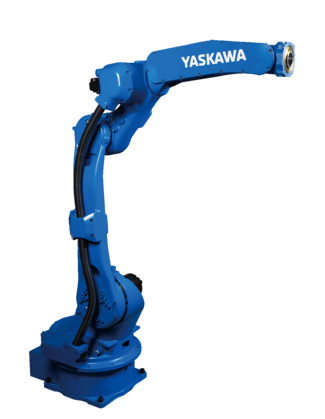

GP25

6-Axis Handling Robot with 25 kg payload

Overview

The GP25 is a highly versatile 6-axis industrial robot with 25 kg payload, 1730 mm reach and an outstanding repeatability of +/- 0.02 mm.

The GP25 robot is offering a perfectly tuned payload / speed / wrist allowable moment combination, for impressive speed and acceleration performance. The small footprint, slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.

This robot is also available with high IP65/67 (dust & liquid protection and anti-corrosive coating) to operate in harsh environments.

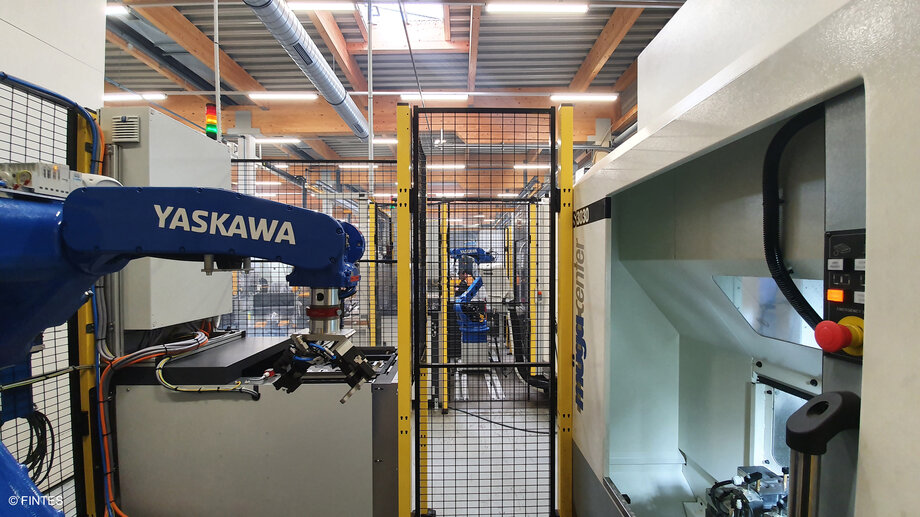

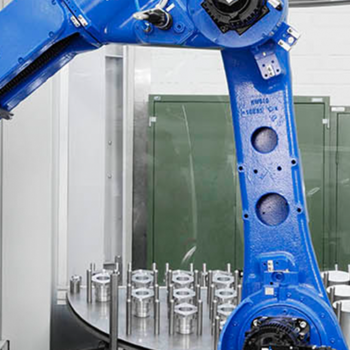

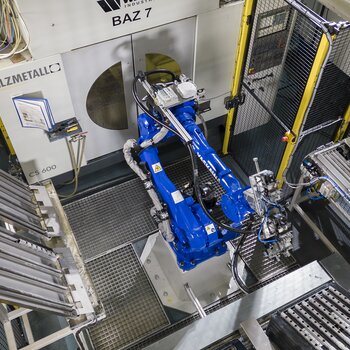

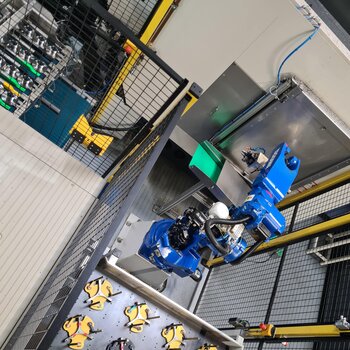

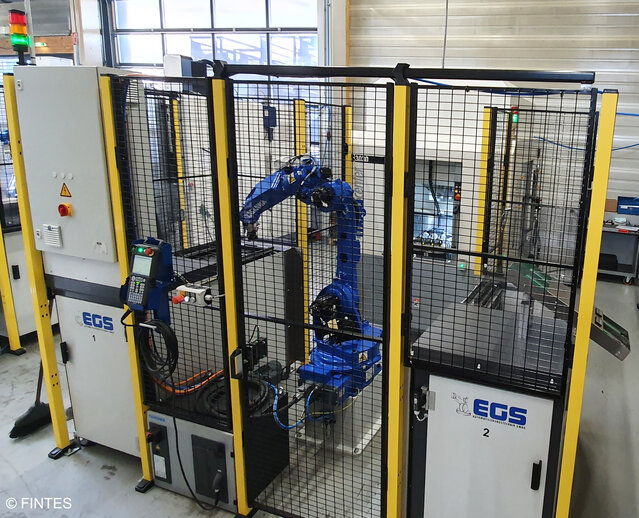

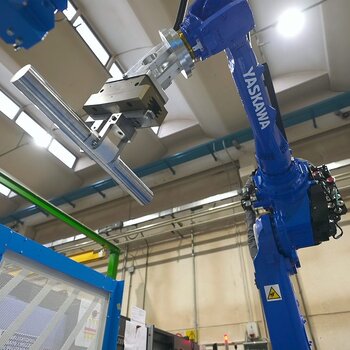

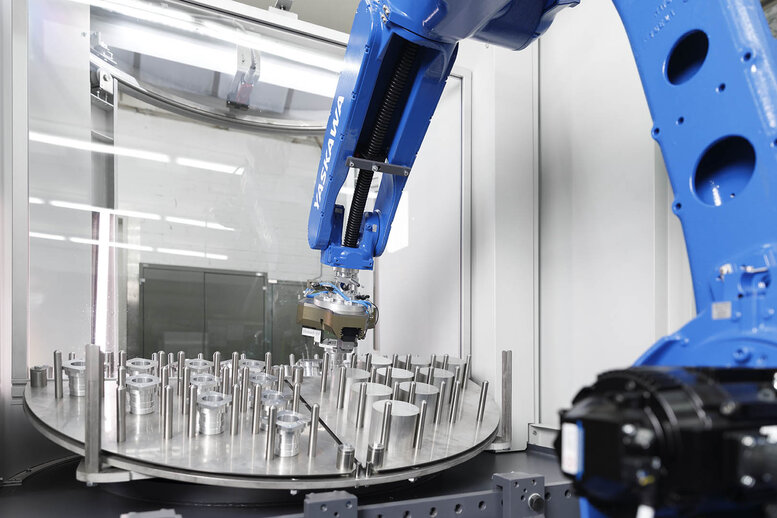

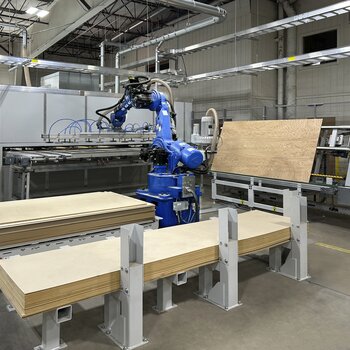

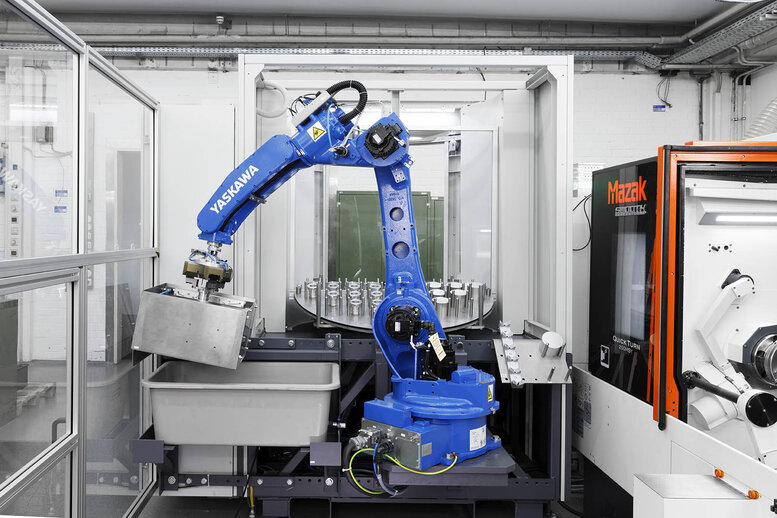

The GP25 is perfect for a wide range of applications, perfect for machine tending, material handling, material removalassembly, additive manufacturing, dispensing and grinding/polishing.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 25 kg
  • Max. Working Range
  • 1730 mm
  • Repeatability
  • 0.03 mm
  • Weight
  • 250 kg
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 210 °/s
  • Maximum Speed L Axis
  • 210 °/s
  • Maximum Speed U Axis
  • 265 °/s
  • Maximum Speed R Axis
  • 420 °/s
  • Maximum Speed B Axis
  • 420 °/s
  • Maximum Speed T Axis
  • 885 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot GP25 GP25-12
Handling & General Applications with the GP-series Data sheet | English
Data sheet English
Flyer Robot GP25 GP25-12
Handling & Allgemeine Applikationen mit der GP-Serie Data sheet | German
Data sheet German
GP25 2D CAD/CAE | CAD/CAE
GP25 3D CAD/CAE | CAD/CAE
Flyer Robot GP25 GP25-12
Manipulation & Applications générales avec la série GP Data sheet | French
Data sheet French
Brochure GP Series Brochures | English Brochures English
Broschüre GP-Serie Brochures | German Brochures German

Related Products

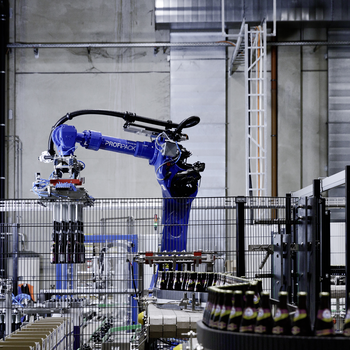

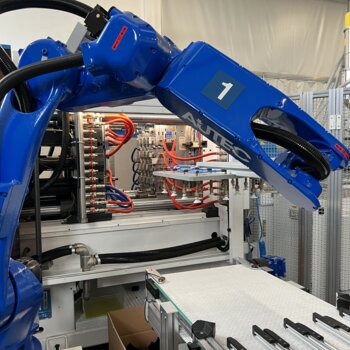

Use Cases
