GP-serie
GP7
Small & agile 6-Axis-Robot with 7 kg Payload
Overview

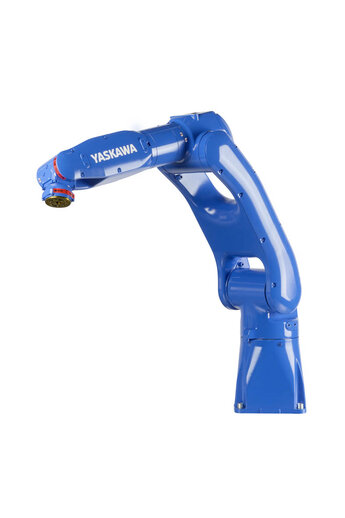

The MOTOMAN GP7, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 7 kg payload, 927 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP7 for use in all kinds of applications, e.g. handling, assembly, pick&place (often in combination with 3D machine vision) and quality inspection.
High IP67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP7 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP7 food grade grease version and CR5 cleanroom class version is also available.
Technical Details
- Number of Axes
- 6
- Payload
- 7 kg
- Max. Working Range
- 927 mm
- Repeatability
- 0.01 mm
- Weight
- 37 kg
- Power Supply
- 1 kVA
- Maximum Speed S Axis
- 375 °/s
- Maximum Speed L Axis
- 315 °/s
- Maximum Speed U Axis
- 410 °/s
- Maximum Speed R Axis
- 550 °/s
- Maximum Speed B Axis
- 550 °/s
- Maximum Speed T Axis
- 1000 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
Downloads
| Name | |||
|
Flyer Robot GP7
Handling & General Application with the GP-Series Data sheet | English |
Data sheet | English | |
|
Flyer Robot GP7
Handling & Allgemeine Applikationen mit der GP-Serie Data sheet | German |
Data sheet | German | |
|
Flyer Robot GP7 GP8 ACC
Handling & General Application in corrosive Environments Data sheet | English |
Data sheet | English | |
|
Flyer Robot GP7 GP8 ACC
Handling & Allgemeine Applikationen in korrosiven Umgebungen Data sheet | German |
Data sheet | German | |
| GP7 2D CAD/CAE | | CAD/CAE | ||
| GP7 3D CAD/CAE | | CAD/CAE | ||
| Serie GP Brochures | Spanish | Brochures | Spanish | |
| Brochure GP Series Brochures | English | Brochures | English | |
| Broschüre GP-Serie Brochures | German | Brochures | German |
